简介

这一节主要讲一下我们使用CPU与GPU交互的CPU内存的申请使用和具体的区别。测试平台为orin

参考https://docs.nvidia.com/cuda/cuda-for-tegra-appnote/index.html#memory-management

基础知识

这里主要时CPU内存的相关问题，主要分为

  • pageable mem ，例如使用malloc申请的CPU内存
  • pinned mem ，例如使用cudamallocHost或者使用cudaHostAlloc申请的CPU内存

在涉及H2D和D2H的内存拷贝时，我们都需要使CPU的mem为 pinned mem 保障拷贝速度最快。

下面使用矩阵加法来演示几种内存。

pageable mem

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
#include "../common/common.h"
#include <cuda_runtime.h>
#include <stdio.h>

/*
 * This example implements matrix element-wise addition on the host and GPU.
 * sumMatrixOnHost iterates over the rows and columns of each matrix, adding
 * elements from A and B together and storing the results in C. The current
 * offset in each matrix is stored using pointer arithmetic. sumMatrixOnGPU2D
 * implements the same logic, but using CUDA threads to process each matrix.
 */

void initialData(float *ip, const int size)
{
    int i;

    for(i = 0; i < size; i++)
    {
        ip[i] = (float)( rand() & 0xFF ) / 10.0f;
    }
}

void sumMatrixOnHost(float *A, float *B, float *C, const int nx, const int ny)
{
    float *ia = A;
    float *ib = B;
    float *ic = C;

    for (int iy = 0; iy < ny; iy++)
    {
        for (int ix = 0; ix < nx; ix++)
        {
            ic[ix] = ia[ix] + ib[ix];
        }

        ia += nx;
        ib += nx;
        ic += nx;
    }

    return;
}

void checkResult(float *hostRef, float *gpuRef, const int N)
{
    double epsilon = 1.0E-8;

    for (int i = 0; i < N; i++)
    {
        if (abs(hostRef[i] - gpuRef[i]) > epsilon)
        {
            printf("host %f gpu %f ", hostRef[i], gpuRef[i]);
            printf("Arrays do not match.\n\n");
            break;
        }
    }
}

// grid 2D block 2D
__global__ void sumMatrixOnGPU2D(float *A, float *B, float *C, int NX, int NY)
{
    unsigned int ix = blockIdx.x * blockDim.x + threadIdx.x;
    unsigned int iy = blockIdx.y * blockDim.y + threadIdx.y;
    unsigned int idx = iy * NX + ix;

    if (ix < NX && iy < NY)
    {
        C[idx] = A[idx] + B[idx];
    }
}

int main(int argc, char **argv)
{
    // set up device
    int dev = 0;
    cudaDeviceProp deviceProp;
    CHECK(cudaGetDeviceProperties(&deviceProp, dev));
    CHECK(cudaSetDevice(dev));

    // set up data size of matrix
    int nx = 1 << 10;
    int ny = 1 << 10;

    int nxy = nx * ny;
    int nBytes = nxy * sizeof(float);

    // malloc host memory
    float *h_A, *h_B, *hostRef, *gpuRef;
    h_A = (float *)malloc(nBytes);
    h_B = (float *)malloc(nBytes);
    hostRef = (float *)malloc(nBytes);
    gpuRef = (float *)malloc(nBytes);

    // initialize data at host side
    double iStart = seconds();
    initialData(h_A, nxy);
    initialData(h_B, nxy);
    double iElaps = seconds() - iStart;

    memset(hostRef, 0, nBytes);
    memset(gpuRef, 0, nBytes);

    // add matrix at host side for result checks
    // iStart = seconds();
    sumMatrixOnHost (h_A, h_B, hostRef, nx, ny);
    // iElaps = seconds() - iStart;

    // malloc device global memory
    float *d_MatA, *d_MatB, *d_MatC;
    CHECK(cudaMalloc((void **)&d_MatA, nBytes));
    CHECK(cudaMalloc((void **)&d_MatB, nBytes));
    CHECK(cudaMalloc((void **)&d_MatC, nBytes));

    // transfer data from host to device
    CHECK(cudaMemcpy(d_MatA, h_A, nBytes, cudaMemcpyHostToDevice));
    CHECK(cudaMemcpy(d_MatB, h_B, nBytes, cudaMemcpyHostToDevice));

    // invoke kernel at host side
    int dimx = 32;
    int dimy = 32;

    if(argc > 2)
    {
        dimx = atoi(argv[1]);
        dimy = atoi(argv[2]);
    }

    dim3 block(dimx, dimy);
    dim3 grid((nx + block.x - 1) / block.x, (ny + block.y - 1) / block.y);

    // execute the kernel
    CHECK(cudaDeviceSynchronize());
    iStart = seconds();
    sumMatrixOnGPU2D<<<grid, block>>>(d_MatA, d_MatB, d_MatC, nx, ny);
    CHECK(cudaDeviceSynchronize());
    iElaps = seconds() - iStart;
    printf("sumMatrixOnGPU2D <<<(%d,%d), (%d,%d)>>> elapsed %f s\n", grid.x,
           grid.y,
           block.x, block.y, iElaps);
	printf("iStart=%lf end=%lf \n",iStart,seconds());
    CHECK(cudaGetLastError());

    // copy kernel result back to host side
    CHECK(cudaMemcpy(gpuRef, d_MatC, nBytes, cudaMemcpyDeviceToHost));

    // check device results
    checkResult(hostRef, gpuRef, nxy);

    // free device global memory
    CHECK(cudaFree(d_MatA));
    CHECK(cudaFree(d_MatB));
    CHECK(cudaFree(d_MatC));

    // free host memory
    free(h_A);
    free(h_B);
    free(hostRef);
    free(gpuRef);

    // reset device
    CHECK(cudaDeviceReset());

    return EXIT_SUCCESS;
}

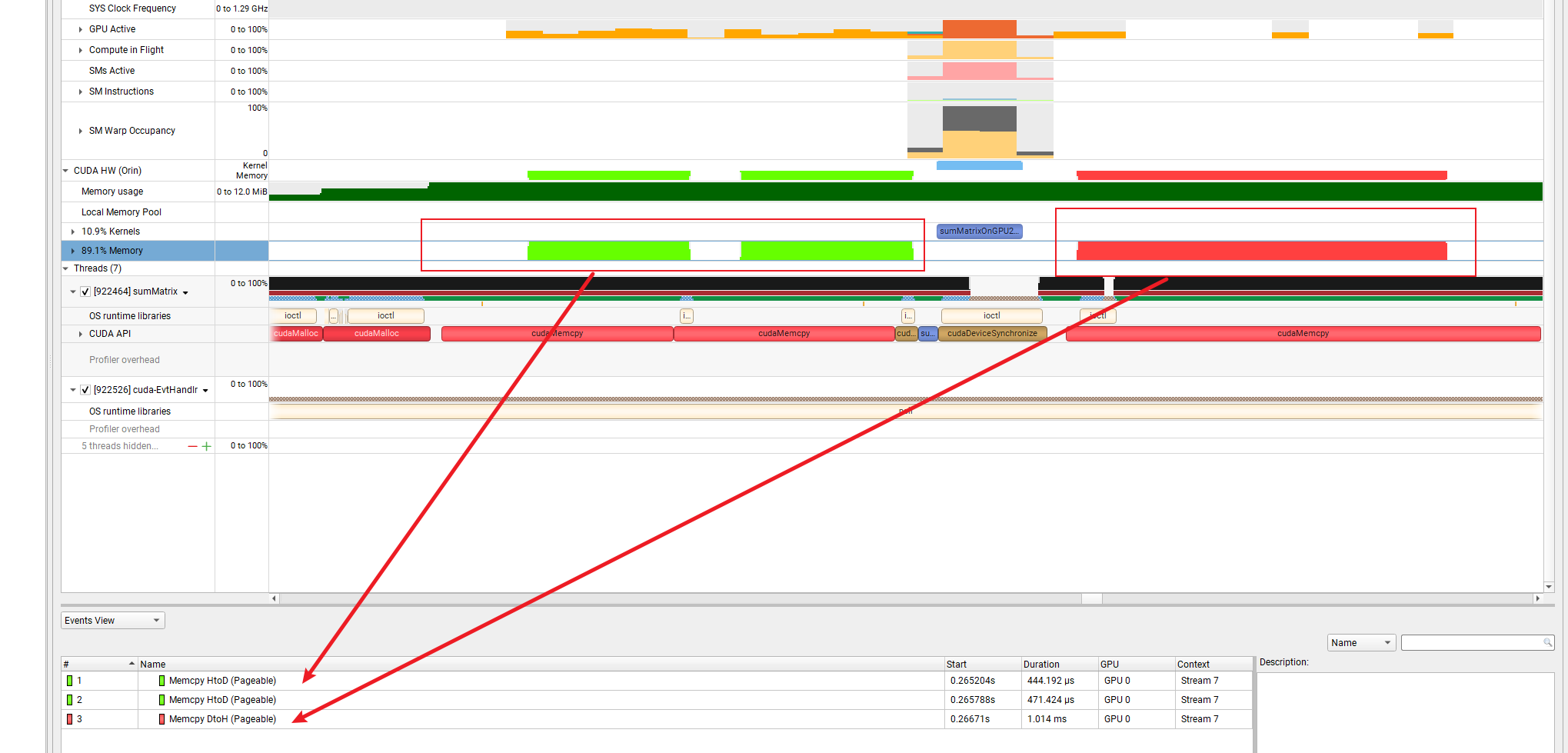

分析nsys如下，可以看出kernel前后都有拷贝，同时是paegable mem。这是最差的情况。一个绿色部分的内存拷贝时间为442us

pinned mem

使用cudaHostAlloc或者cudamallocHost申请的CPU内存。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78

int main(int argc, char **argv) {
    int dev = 0;
    cudaDeviceProp deviceProp;
    CHECK(cudaGetDeviceProperties(&deviceProp, dev));
    CHECK(cudaSetDevice(dev));

    int nx = 1 << 10, ny = 1 << 10;
    int nxy = nx * ny, nBytes = nxy * sizeof(float);

    // 创建非阻塞流和事件
    cudaStream_t stream;
    cudaEvent_t startEvent, endEvent;
    CHECK(cudaStreamCreateWithFlags(&stream, cudaStreamNonBlocking));
    CHECK(cudaEventCreate(&startEvent));
    CHECK(cudaEventCreate(&endEvent));

    // 固定内存分配（主机）
    float *h_A, *h_B, *hostRef, *gpuRef;
    CHECK(cudaHostAlloc((void**)&h_A, nBytes, cudaHostAllocDefault));
    CHECK(cudaHostAlloc((void**)&h_B, nBytes, cudaHostAllocDefault));
    CHECK(cudaHostAlloc((void**)&hostRef, nBytes, cudaHostAllocDefault));
    CHECK(cudaHostAlloc((void**)&gpuRef, nBytes, cudaHostAllocDefault));

    // 设备内存分配
    float *d_MatA, *d_MatB, *d_MatC;
    CHECK(cudaMalloc(&d_MatA, nBytes));
    CHECK(cudaMalloc(&d_MatB, nBytes));
    CHECK(cudaMalloc(&d_MatC, nBytes));

    // 初始化数据
    initialData(h_A, nxy);
    initialData(h_B, nxy);
    memset(hostRef, 0, nBytes);
    sumMatrixOnHost(h_A, h_B, hostRef, nx, ny);

    // 异步数据传输（主机→设备）
    CHECK(cudaMemcpyAsync(d_MatA, h_A, nBytes, cudaMemcpyHostToDevice, stream));
    CHECK(cudaMemcpyAsync(d_MatB, h_B, nBytes, cudaMemcpyHostToDevice, stream));

    // 核函数配置
    int dimx = 32, dimy = 32;
    if(argc > 2) { dimx = atoi(argv[1]); dimy = atoi(argv[2]); }
    dim3 block(dimx, dimy), grid((nx+block.x-1)/block.x, (ny+block.y-1)/block.y);

    // 执行核函数并计时
    CHECK(cudaEventRecord(startEvent, stream));  // 记录流开始
    sumMatrixOnGPU2D<<<grid, block, 0, stream>>>(d_MatA, d_MatB, d_MatC, nx, ny);
    CHECK(cudaEventRecord(endEvent, stream));    // 记录流结束

    // 异步数据传输（设备→主机）
    CHECK(cudaMemcpyAsync(gpuRef, d_MatC, nBytes, cudaMemcpyDeviceToHost, stream));

    // 同步流并计算时间
    CHECK(cudaStreamSynchronize(stream));
    float kernelTime;
    CHECK(cudaEventElapsedTime(&kernelTime, startEvent, endEvent));
    printf("sumMatrixOnGPU2D kernel elapsed: %.4f ms\n", kernelTime);

    // 验证结果
    checkResult(hostRef, gpuRef, nxy);

    // 释放资源
    CHECK(cudaEventDestroy(startEvent));
    CHECK(cudaEventDestroy(endEvent));
    CHECK(cudaStreamDestroy(stream));
    CHECK(cudaFree(d_MatA));
    CHECK(cudaFree(d_MatB));
    CHECK(cudaFree(d_MatC));
    CHECK(cudaFreeHost(h_A));
    CHECK(cudaFreeHost(h_B));
    CHECK(cudaFreeHost(hostRef));
    CHECK(cudaFreeHost(gpuRef));

    CHECK(cudaDeviceReset());
    return EXIT_SUCCESS;
}

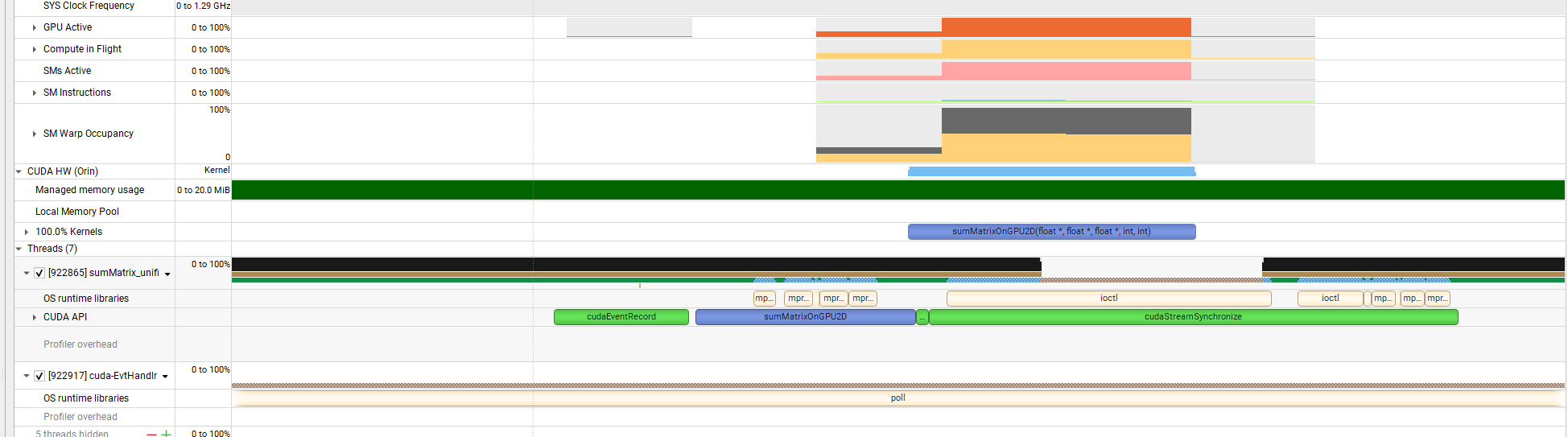

对应的nsys如下，一次内存拷贝时间为127ms

pinned mem但是不拷贝

因为我是用的是orin设备，实际上CPU和GPU使用的同一块内存，因此不需要拷贝到GPU，申请的CPU的内存指针可以直接给到GPU的kernel使用。

有一种情况这种使用不合适

  • 当一个小的数据经过kernel频繁的访问计算，然后传递出kernel，，这个时候使用cudamalloc的GPU内存是最优的，不要使用cudaHostAlloc或者cudamallocHost申请这一部分GPU内存，因为cudamalloc申请的GPU内存会有GPU 的L2 cache 可以快速访问,但是cudaHostAlloc或者cudamallocHost的GPU内存只能从global mem访问，太慢了。

备注：需要cuda版本也足够，具体从哪一个版本支持需要查看一下NV统一内存的相关信息，因为我的cuda版本满足，也就没多深入。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79

int main(int argc, char **argv) {
    int dev = 0;
    cudaDeviceProp deviceProp;
    CHECK(cudaGetDeviceProperties(&deviceProp, dev));
    CHECK(cudaSetDevice(dev));

    int nx = 1 << 10, ny = 1 << 10;
    int nxy = nx * ny, nBytes = nxy * sizeof(float);

    // 创建非阻塞流和事件
    cudaStream_t stream;
    cudaEvent_t startEvent, endEvent;
    CHECK(cudaStreamCreateWithFlags(&stream, cudaStreamNonBlocking));
    CHECK(cudaEventCreate(&startEvent));
    CHECK(cudaEventCreate(&endEvent));

    // 固定内存分配（主机）
    float *h_A, *h_B, *hostRef, *gpuRef;
    CHECK(cudaHostAlloc((void**)&h_A, nBytes, cudaHostAllocDefault));
    CHECK(cudaHostAlloc((void**)&h_B, nBytes, cudaHostAllocDefault));
    CHECK(cudaHostAlloc((void**)&hostRef, nBytes, cudaHostAllocDefault));
    CHECK(cudaHostAlloc((void**)&gpuRef, nBytes, cudaHostAllocDefault));

    // // 设备内存分配
    // float *d_MatA, *d_MatB, *d_MatC;
    // CHECK(cudaMalloc(&d_MatA, nBytes));
    // CHECK(cudaMalloc(&d_MatB, nBytes));
    // CHECK(cudaMalloc(&d_MatC, nBytes));

    // 初始化数据
    initialData(h_A, nxy);
    initialData(h_B, nxy);
    memset(hostRef, 0, nBytes);
    sumMatrixOnHost(h_A, h_B, hostRef, nx, ny);

    // // 异步数据传输（主机→设备）
    // CHECK(cudaMemcpyAsync(d_MatA, h_A, nBytes, cudaMemcpyHostToDevice, stream));
    // CHECK(cudaMemcpyAsync(d_MatB, h_B, nBytes, cudaMemcpyHostToDevice, stream));

    // 核函数配置
    int dimx = 32, dimy = 32;
    if(argc > 2) { dimx = atoi(argv[1]); dimy = atoi(argv[2]); }
    dim3 block(dimx, dimy), grid((nx+block.x-1)/block.x, (ny+block.y-1)/block.y);

    // 执行核函数并计时
    CHECK(cudaEventRecord(startEvent, stream));  // 记录流开始
    // sumMatrixOnGPU2D<<<grid, block, 0, stream>>>(d_MatA, d_MatB, d_MatC, nx, ny);
    sumMatrixOnGPU2D<<<grid, block, 0, stream>>>(h_A, h_B, gpuRef, nx, ny);
    CHECK(cudaEventRecord(endEvent, stream));    // 记录流结束

    // 异步数据传输（设备→主机）
    // CHECK(cudaMemcpyAsync(gpuRef, d_MatC, nBytes, cudaMemcpyDeviceToHost, stream));

    // 同步流并计算时间
    CHECK(cudaStreamSynchronize(stream));
    float kernelTime;
    CHECK(cudaEventElapsedTime(&kernelTime, startEvent, endEvent));
    printf("sumMatrixOnGPU2D kernel elapsed: %.4f ms\n", kernelTime);

    // 验证结果
    checkResult(hostRef, gpuRef, nxy);

    // 释放资源
    CHECK(cudaEventDestroy(startEvent));
    CHECK(cudaEventDestroy(endEvent));
    CHECK(cudaStreamDestroy(stream));
    // CHECK(cudaFree(d_MatA));
    // CHECK(cudaFree(d_MatB));
    // CHECK(cudaFree(d_MatC));
    CHECK(cudaFreeHost(h_A));
    CHECK(cudaFreeHost(h_B));
    CHECK(cudaFreeHost(hostRef));
    CHECK(cudaFreeHost(gpuRef));

    CHECK(cudaDeviceReset());
    return EXIT_SUCCESS;
}

cudaHostRegister

这里再测试一种情况，如果我们需要使用kernel计算的CPU内存不是我们自己申请的，例如是另外一个进程传递来的，但是是pageable的mem，我么可以使用cudaHostRegister函数将这个内存转换为pinned mem，转换一次即可。

下面代码kernel的输入内存使用了cudaHostRegister处理，但是输出的D2H内存没有处理。可以对比一下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97

int main(int argc, char **argv)
{
    // set up device
    int dev = 0;
    cudaDeviceProp deviceProp;
    CHECK(cudaGetDeviceProperties(&deviceProp, dev));
    CHECK(cudaSetDevice(dev));

    // set up data size of matrix
    int nx = 1 << 10;
    int ny = 1 << 10;

    int nxy = nx * ny;
    int nBytes = nxy * sizeof(float);

    // malloc host memory
    float *h_A, *h_B, *hostRef, *gpuRef;
    h_A = (float *)malloc(nBytes);
    h_B = (float *)malloc(nBytes);
    hostRef = (float *)malloc(nBytes);
    gpuRef = (float *)malloc(nBytes);

    // initialize data at host side
    double iStart = seconds();
    initialData(h_A, nxy);
    initialData(h_B, nxy);
    double iElaps = seconds() - iStart;

    memset(hostRef, 0, nBytes);
    memset(gpuRef, 0, nBytes);

    // add matrix at host side for result checks
    // iStart = seconds();
    sumMatrixOnHost (h_A, h_B, hostRef, nx, ny);
    // iElaps = seconds() - iStart;

    CHECK(cudaHostRegister(h_A,nBytes,cudaHostRegisterDefault));
    CHECK(cudaHostRegister(h_B,nBytes,cudaHostRegisterDefault));

    // malloc device global memory
    float *d_MatA, *d_MatB, *d_MatC;
    CHECK(cudaMalloc((void **)&d_MatA, nBytes));
    CHECK(cudaMalloc((void **)&d_MatB, nBytes));
    CHECK(cudaMalloc((void **)&d_MatC, nBytes));

    // transfer data from host to device
    CHECK(cudaMemcpy(d_MatA, h_A, nBytes, cudaMemcpyHostToDevice));
    CHECK(cudaMemcpy(d_MatB, h_B, nBytes, cudaMemcpyHostToDevice));

    // invoke kernel at host side
    int dimx = 32;
    int dimy = 32;

    if(argc > 2)
    {
        dimx = atoi(argv[1]);
        dimy = atoi(argv[2]);
    }

    dim3 block(dimx, dimy);
    dim3 grid((nx + block.x - 1) / block.x, (ny + block.y - 1) / block.y);

    // execute the kernel
    CHECK(cudaDeviceSynchronize());
    iStart = seconds();
    sumMatrixOnGPU2D<<<grid, block>>>(d_MatA, d_MatB, d_MatC, nx, ny);
    CHECK(cudaDeviceSynchronize());
    iElaps = seconds() - iStart;
    printf("sumMatrixOnGPU2D <<<(%d,%d), (%d,%d)>>> elapsed %f s\n", grid.x,
           grid.y,
           block.x, block.y, iElaps);
	printf("iStart=%lf end=%lf \n",iStart,seconds());
    CHECK(cudaGetLastError());

    // copy kernel result back to host side
    CHECK(cudaMemcpy(gpuRef, d_MatC, nBytes, cudaMemcpyDeviceToHost));

    // check device results
    checkResult(hostRef, gpuRef, nxy);

    // free device global memory
    CHECK(cudaFree(d_MatA));
    CHECK(cudaFree(d_MatB));
    CHECK(cudaFree(d_MatC));

    // free host memory
    free(h_A);
    free(h_B);
    free(hostRef);
    free(gpuRef);

    // reset device
    CHECK(cudaDeviceReset());

    return EXIT_SUCCESS;
}

cudaHostRegister 不拷贝

还是因为我们是orin设备。是不是使用cudaHostRegister后也可以不拷贝呢？答案是的。

下面是测试程序

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128

int main(int argc, char **argv)
{
    // set up device
    int dev = 0;
    cudaDeviceProp deviceProp;
    CHECK(cudaGetDeviceProperties(&deviceProp, dev));
    CHECK(cudaSetDevice(dev));

    cudaStream_t stream;
    cudaEvent_t startEvent, endEvent;
    CHECK(cudaStreamCreateWithFlags(&stream, cudaStreamNonBlocking));
    CHECK(cudaEventCreate(&startEvent));
    CHECK(cudaEventCreate(&endEvent));

    // set up data size of matrix
    int nx = 1 << 10;
    int ny = 1 << 10;

    int nxy = nx * ny;
    int nBytes = nxy * sizeof(float);

    // malloc host memory
    float *h_A, *h_B, *hostRef, *gpuRef;
    h_A = (float *)malloc(nBytes);
    h_B = (float *)malloc(nBytes);
    hostRef = (float *)malloc(nBytes);
    gpuRef = (float *)malloc(nBytes);

    // initialize data at host side
    double iStart = seconds();
    initialData(h_A, nxy);
    initialData(h_B, nxy);
    double iElaps = seconds() - iStart;

    memset(hostRef, 0, nBytes);
    memset(gpuRef, 0, nBytes);

    // add matrix at host side for result checks
    // iStart = seconds();
    sumMatrixOnHost (h_A, h_B, hostRef, nx, ny);
    // iElaps = seconds() - iStart;

    CHECK(cudaHostRegister(h_A,nBytes,cudaHostRegisterDefault));
    CHECK(cudaHostRegister(h_B,nBytes,cudaHostRegisterDefault));
    CHECK(cudaHostRegister(gpuRef,nBytes,cudaHostRegisterDefault));

    // 获取设备端可见的指针（关键修改）
    float *d_h_A, *d_h_B, *d_gpuRef;
    cudaPointerAttributes attr;

    int attrVal;
    cudaDeviceGetAttribute(&attrVal, cudaDevAttrCanUseHostPointerForRegisteredMem, 0);
    printf("cudaDevAttrCanUseHostPointerForRegisteredMem: %d\n", attrVal);

    // // 获取h_A的设备指针
    // CHECK(cudaPointerGetAttributes(&attr, h_A));
    // d_h_A = (float*)attr.devicePointer;
    // printf("h_A Device pointer: %p\n", d_h_A);  // 确认设备指针有效性

    // // 获取h_B的设备指针
    // CHECK(cudaPointerGetAttributes(&attr, h_B));
    // d_h_B = (float*)attr.devicePointer;
    // printf("h_B Device pointer: %p\n", d_h_B);

    // // 获取gpuRef的设备指针
    // CHECK(cudaPointerGetAttributes(&attr, gpuRef));
    // d_gpuRef = (float*)attr.devicePointer;
    // printf("gpuRef Device pointer: %p\n", d_gpuRef);

    // 获取设备指针（零拷贝关键）
    CHECK(cudaHostGetDevicePointer((void**)&d_h_A, h_A, 0));
    CHECK(cudaHostGetDevicePointer((void**)&d_h_B, h_B, 0));
    CHECK(cudaHostGetDevicePointer((void**)&d_gpuRef, gpuRef, 0));

    // invoke kernel at host side
    int dimx = 32;
    int dimy = 32;

    if(argc > 2)
    {
        dimx = atoi(argv[1]);
        dimy = atoi(argv[2]);
    }

    dim3 block(dimx, dimy);
    dim3 grid((nx + block.x - 1) / block.x, (ny + block.y - 1) / block.y);

    // execute the kernel
    // CHECK(cudaDeviceSynchronize());
    iStart = seconds();
    // sumMatrixOnGPU2D<<<grid, block>>>(d_MatA, d_MatB, d_MatC, nx, ny);
    sumMatrixOnGPU2D<<<grid, block, 0, stream>>>(d_h_A, d_h_B, d_gpuRef, nx, ny);
    CHECK(cudaStreamSynchronize(stream));
    // CHECK(cudaDeviceSynchronize());
    iElaps = seconds() - iStart;
    printf("sumMatrixOnGPU2D <<<(%d,%d), (%d,%d)>>> elapsed %f s\n", grid.x,
           grid.y,
           block.x, block.y, iElaps);
	printf("iStart=%lf end=%lf \n",iStart,seconds());
    CHECK(cudaGetLastError());

    // copy kernel result back to host side
    // CHECK(cudaMemcpy(gpuRef, d_MatC, nBytes, cudaMemcpyDeviceToHost));

    // check device results
    printf("TTTTTT0\n");
    checkResult(hostRef, gpuRef, nxy);

    // free device global memory
    // CHECK(cudaFree(d_MatA));
    // CHECK(cudaFree(d_MatB));
    // CHECK(cudaFree(d_MatC));

    printf("TTTTTT1\n");

    // free host memory
    free(h_A);
    free(h_B);
    free(hostRef);
    free(gpuRef);

    // reset device
    CHECK(cudaDeviceReset());

    return EXIT_SUCCESS;
}

统一内存(Unified Memory)

cpu直接申请的GPU就可使用，例如

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
__global__ void printme(char *str) {
  printf(str);
}

int main() {
  // Allocate 100 bytes of memory, accessible to both Host and Device code
  char *s = (char*)malloc(100);
  // Physical allocation placed in CPU memory because host accesses "s" first
  strncpy(s, "Hello Unified Memory\n", 99);
  // Here we pass "s" to a kernel without explicitly copying
  printme<<< 1, 1 >>>(s);
  cudaDeviceSynchronize();
  // Free as for normal CUDA allocations
  cudaFree(s);
  return  0;
}

但是在安全的环境中不建议使用，参考https://docs.nvidia.com/cuda/cuda-for-tegra-appnote/index.html#memory-selection

测试代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64

int main(int argc, char **argv) {
    int dev = 0;
    cudaDeviceProp deviceProp;
    CHECK(cudaGetDeviceProperties(&deviceProp, dev));
    CHECK(cudaSetDevice(dev));

    int nx = 1 << 10, ny = 1 << 10;
    int nxy = nx * ny, nBytes = nxy * sizeof(float);

    // 创建非阻塞流和事件
    cudaStream_t stream;
    cudaEvent_t startEvent, endEvent;
    CHECK(cudaStreamCreateWithFlags(&stream, cudaStreamNonBlocking));
    CHECK(cudaEventCreate(&startEvent));
    CHECK(cudaEventCreate(&endEvent));

    // 统一内存分配
    float *d_MatA, *d_MatB, *d_MatC, *hostRef, *gpuRef;
    CHECK(cudaMallocManaged(&d_MatA, nBytes));
    CHECK(cudaMallocManaged(&d_MatB, nBytes));
    CHECK(cudaMallocManaged(&d_MatC, nBytes));
    CHECK(cudaMallocManaged(&hostRef, nBytes));
    CHECK(cudaMallocManaged(&gpuRef, nBytes));

    // 初始化数据（直接操作统一内存）
    initialData(d_MatA, nxy);
    initialData(d_MatB, nxy);
    memset(hostRef, 0, nBytes);
    sumMatrixOnHost(d_MatA, d_MatB, hostRef, nx, ny);

    // 核函数配置
    int dimx = 32, dimy = 32;
    if(argc > 2) { dimx = atoi(argv[1]); dimy = atoi(argv[2]); }
    dim3 block(dimx, dimy), grid((nx+block.x-1)/block.x, (ny+block.y-1)/block.y);

    // 执行核函数并计时（统一内存无需数据拷贝）
    CHECK(cudaEventRecord(startEvent, stream));
    sumMatrixOnGPU2D<<<grid, block, 0, stream>>>(d_MatA, d_MatB, d_MatC, nx, ny);
    CHECK(cudaEventRecord(endEvent, stream));

    // 同步流并计算时间
    CHECK(cudaStreamSynchronize(stream));
    float kernelTime;
    CHECK(cudaEventElapsedTime(&kernelTime, startEvent, endEvent));
    printf("sumMatrixOnGPU2D kernel elapsed: %.4f ms\n", kernelTime);

    // 验证结果（统一内存自动同步）
    checkResult(hostRef, d_MatC, nxy);  // 直接使用d_MatC指针

    // 释放资源
    CHECK(cudaEventDestroy(startEvent));
    CHECK(cudaEventDestroy(endEvent));
    CHECK(cudaStreamDestroy(stream));
    CHECK(cudaFree(d_MatA));
    CHECK(cudaFree(d_MatB));
    CHECK(cudaFree(d_MatC));
    CHECK(cudaFree(hostRef));
    CHECK(cudaFree(gpuRef));

    CHECK(cudaDeviceReset());
    return EXIT_SUCCESS;
}

对应的nsys

零拷贝内存 zerocopy mem

使用cudaHostAlloc申请，使用cudaHostGetDevicePointer获取对应的GPU指针。也不需要拷贝

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73

int main(int argc, char **argv) {
    int dev = 0;
    cudaDeviceProp deviceProp;
    CHECK(cudaGetDeviceProperties(&deviceProp, dev));
    CHECK(cudaSetDevice(dev));

    int nx = 1 << 10, ny = 1 << 10;
    int nxy = nx * ny, nBytes = nxy * sizeof(float);

    // 创建非阻塞流和事件
    cudaStream_t stream;
    cudaEvent_t startEvent, endEvent;
    CHECK(cudaStreamCreateWithFlags(&stream, cudaStreamNonBlocking));
    CHECK(cudaEventCreate(&startEvent));
    CHECK(cudaEventCreate(&endEvent));

    // 零拷贝内存分配（可映射的固定内存）
    float *h_A, *h_B, *hostRef, *gpuRef;
    CHECK(cudaHostAlloc((void**)&h_A, nBytes, cudaHostAllocMapped | cudaHostAllocWriteCombined));
    CHECK(cudaHostAlloc((void**)&h_B, nBytes, cudaHostAllocMapped | cudaHostAllocWriteCombined));
    CHECK(cudaHostAlloc((void**)&hostRef, nBytes, cudaHostAllocDefault));
    // CHECK(cudaHostAlloc((void**)&gpuRef, nBytes, cudaHostAllocDefault));
    CHECK(cudaHostAlloc((void**)&gpuRef, nBytes, cudaHostAllocMapped | cudaHostAllocWriteCombined));

    // 获取设备指针（零拷贝关键）
    float *d_MatA, *d_MatB, *d_MatC;
    CHECK(cudaHostGetDevicePointer((void**)&d_MatA, h_A, 0));
    CHECK(cudaHostGetDevicePointer((void**)&d_MatB, h_B, 0));
    CHECK(cudaHostGetDevicePointer((void**)&d_MatC, gpuRef, 0));
    // CHECK(cudaMalloc(&d_MatC, nBytes));  // 结果用设备内存

    // 初始化数据（直接操作主机内存）
    initialData(h_A, nxy);
    initialData(h_B, nxy);
    memset(hostRef, 0, nBytes);
    sumMatrixOnHost(h_A, h_B, hostRef, nx, ny);

    // 核函数配置
    int dimx = 32, dimy = 32;
    if(argc > 2) { dimx = atoi(argv[1]); dimy = atoi(argv[2]); }
    dim3 block(dimx, dimy), grid((nx+block.x-1)/block.x, (ny+block.y-1)/block.y);

    // 执行核函数并计时（输入数据已通过映射指针访问，无需主机→设备拷贝）
    CHECK(cudaEventRecord(startEvent, stream));
    sumMatrixOnGPU2D<<<grid, block, 0, stream>>>(d_MatA, d_MatB, d_MatC, nx, ny);
    CHECK(cudaEventRecord(endEvent, stream));

    // // 异步结果拷贝（设备→主机）
    // CHECK(cudaMemcpyAsync(gpuRef, d_MatC, nBytes, cudaMemcpyDeviceToHost, stream));

    // 同步流并计算时间
    CHECK(cudaStreamSynchronize(stream));
    float kernelTime;
    CHECK(cudaEventElapsedTime(&kernelTime, startEvent, endEvent));
    printf("sumMatrixOnGPU2D kernel elapsed: %.4f ms\n", kernelTime);

    // 验证结果
    checkResult(hostRef, gpuRef, nxy);

    // 释放资源
    CHECK(cudaEventDestroy(startEvent));
    CHECK(cudaEventDestroy(endEvent));
    CHECK(cudaStreamDestroy(stream));
    // CHECK(cudaFree(d_MatC));
    CHECK(cudaFreeHost(h_A));
    CHECK(cudaFreeHost(h_B));
    CHECK(cudaFreeHost(hostRef));
    CHECK(cudaFreeHost(gpuRef));

    CHECK(cudaDeviceReset());
    return EXIT_SUCCESS;
}

对应的nsys

总结

在orin设备上，首选使用zerocopy mem。

内存种类 申请方式 内存拷贝 kernel使用的内存指针 推荐使用
pageable malloc+cudaMalloc cudaMemcpy
pageable->Device		 cudaMalloc的内存
pageable+cudaHostRegister malloc+cudaHostRegister+cudaMalloc cudaMemcpy
pinned->Device		 cudaMalloc的内存 推荐
pageable+cudaHostRegister+no cpy malloc+cudaHostRegister+cudaHostGetDevicePointer 无 cudaHostGetDevicePointer 推荐
pinned cudaHostAlloc+cudaMalloc cudaMemcpy
pinned->Device		 cudaMalloc的内存 推荐
pinned+no cpy cudaHostAlloc 无 cudaHostAlloc的内存 推荐
Unified cudaMallocManaged 无 cudaMallocManaged的内存
zero copy mem cudaHostAlloc+cudaHostGetDevicePointer 无 cudaHostGetDevicePointer 首选

附录
